Huron Speed V3 Twin T4 Kit

 Huron Speed V3 Twin T4 Kit

Black Series 4" Intercooler is now Standard as the base intercooler!

Kit Information:

*Our new V3 Stainless Steel, Vbanded, extra thick .120 wall Manifolds that retain the OEM Alternator location

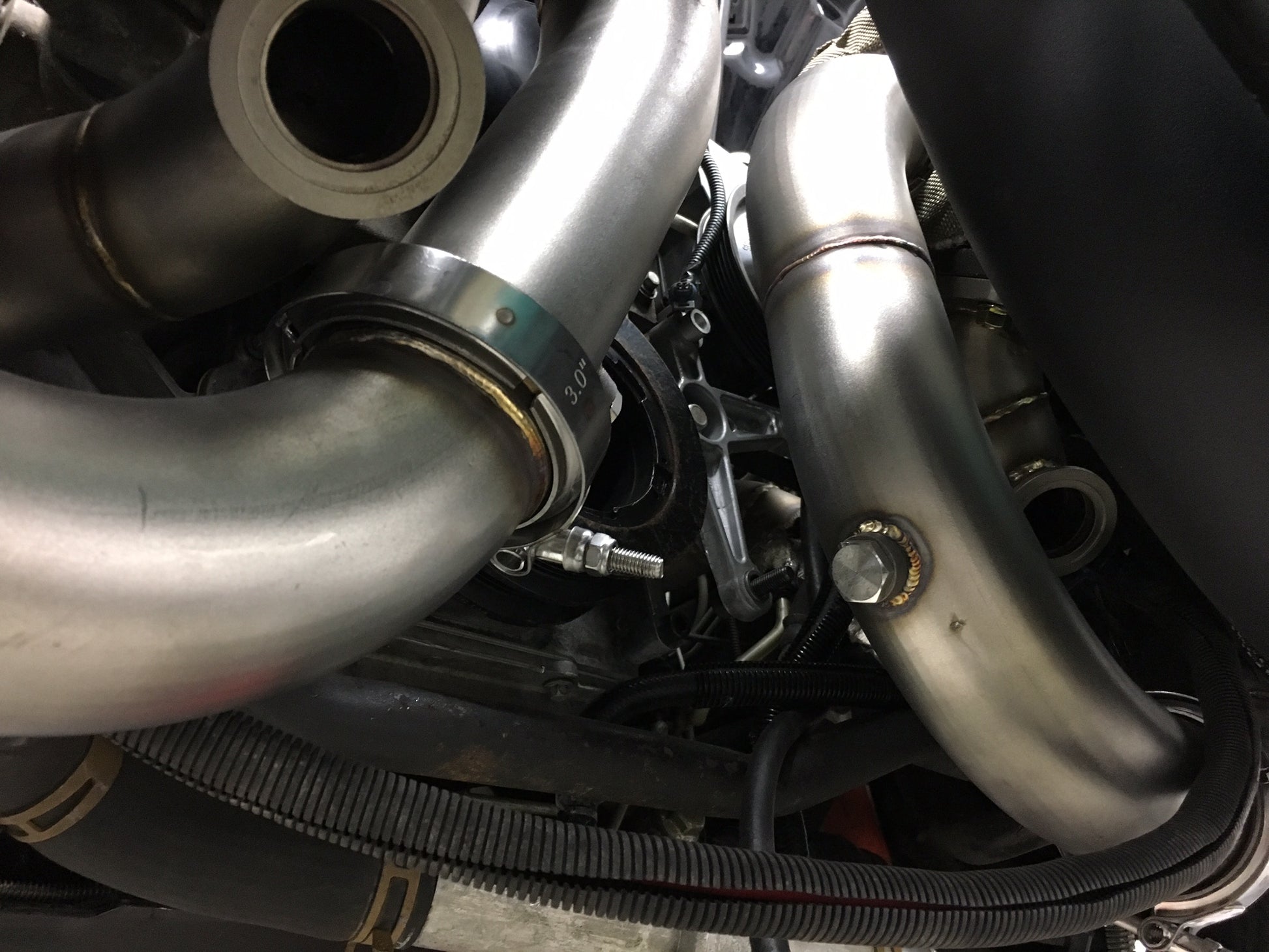

* 2.5” extra thick .120 wall Stainless Up-Pipes, V-banded allow for easier installation with 44-46mm V-banded Wastegate ports and primary O2 sensor bungs. All piping stays ABOVE the oem sway bar!

* Pair of full 3" Stainless 2-piece dp's routed through a Turbo Style K-member will supply the exhaust flow needed for 1500hp. Now with Wideband O2 bungs available in BOTH dp's for tuning w/ plugs.

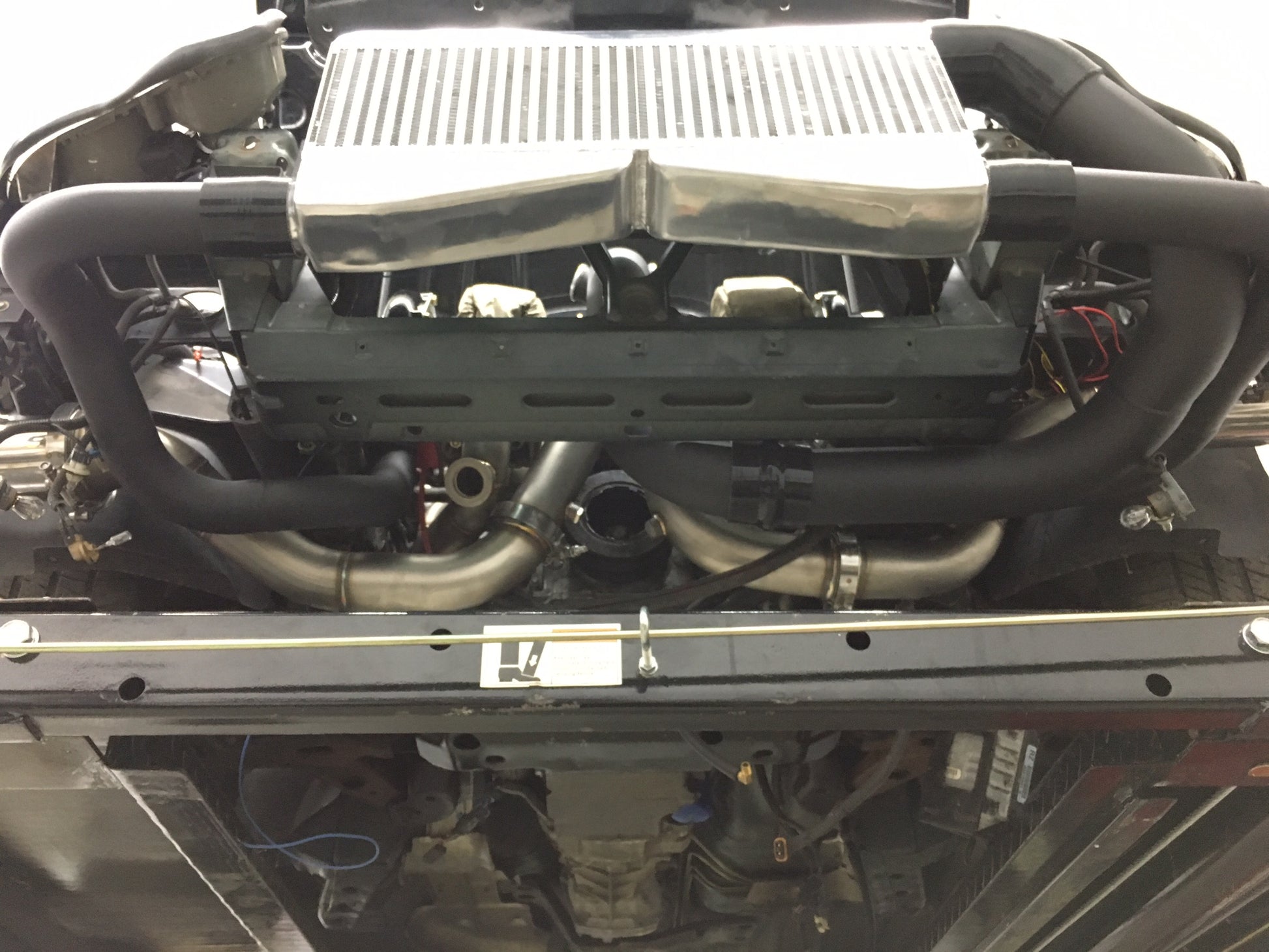

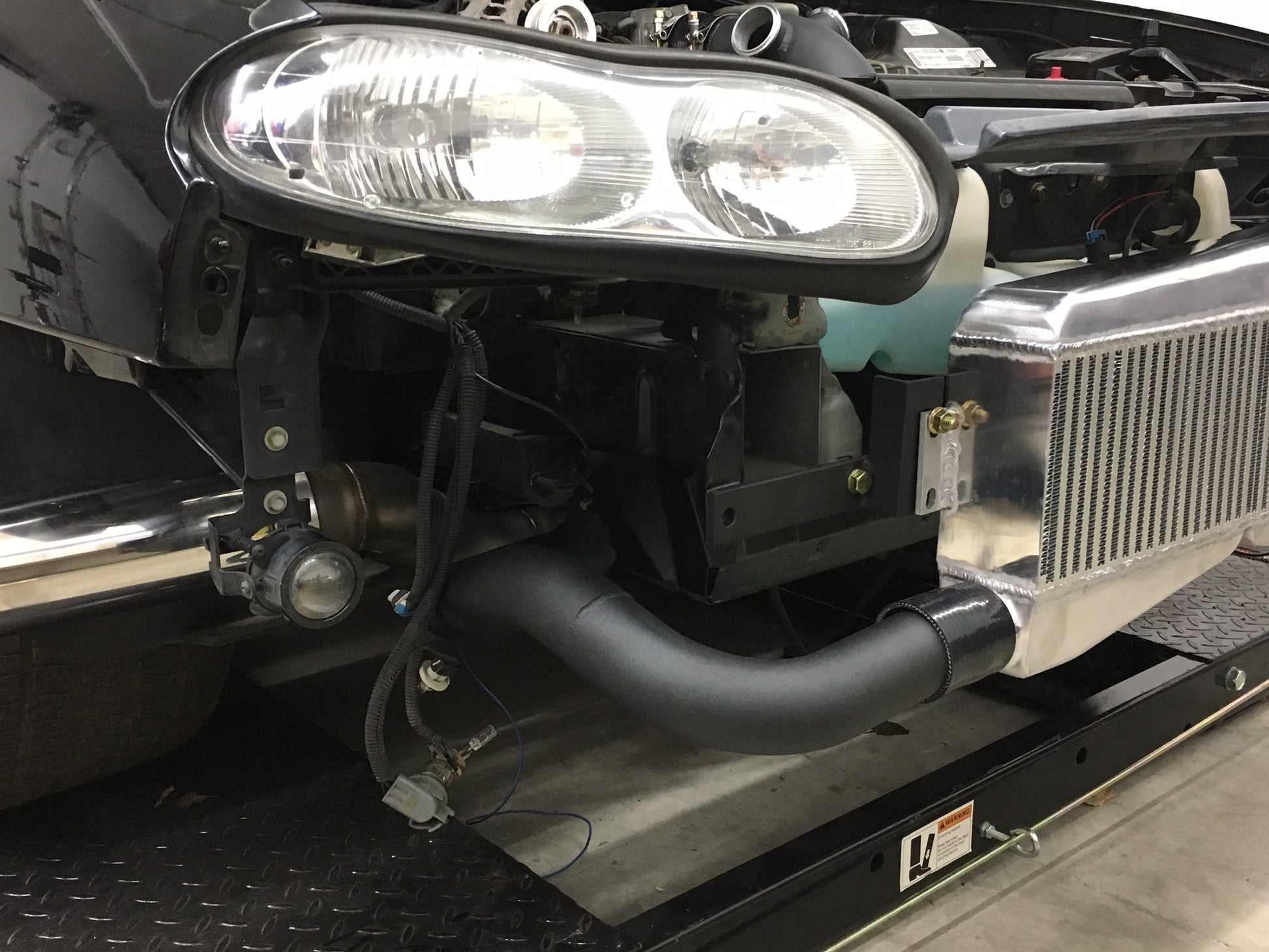

* Huron Speed Black Series 4" Thick Core intercooler with Air-guides and direct bolt on bracket, dual inlets and single outlet.

* Optional Bell 4.5" or 6" Thick Core Intercooler with direct bolt on bracket for 1000-1500hp applications

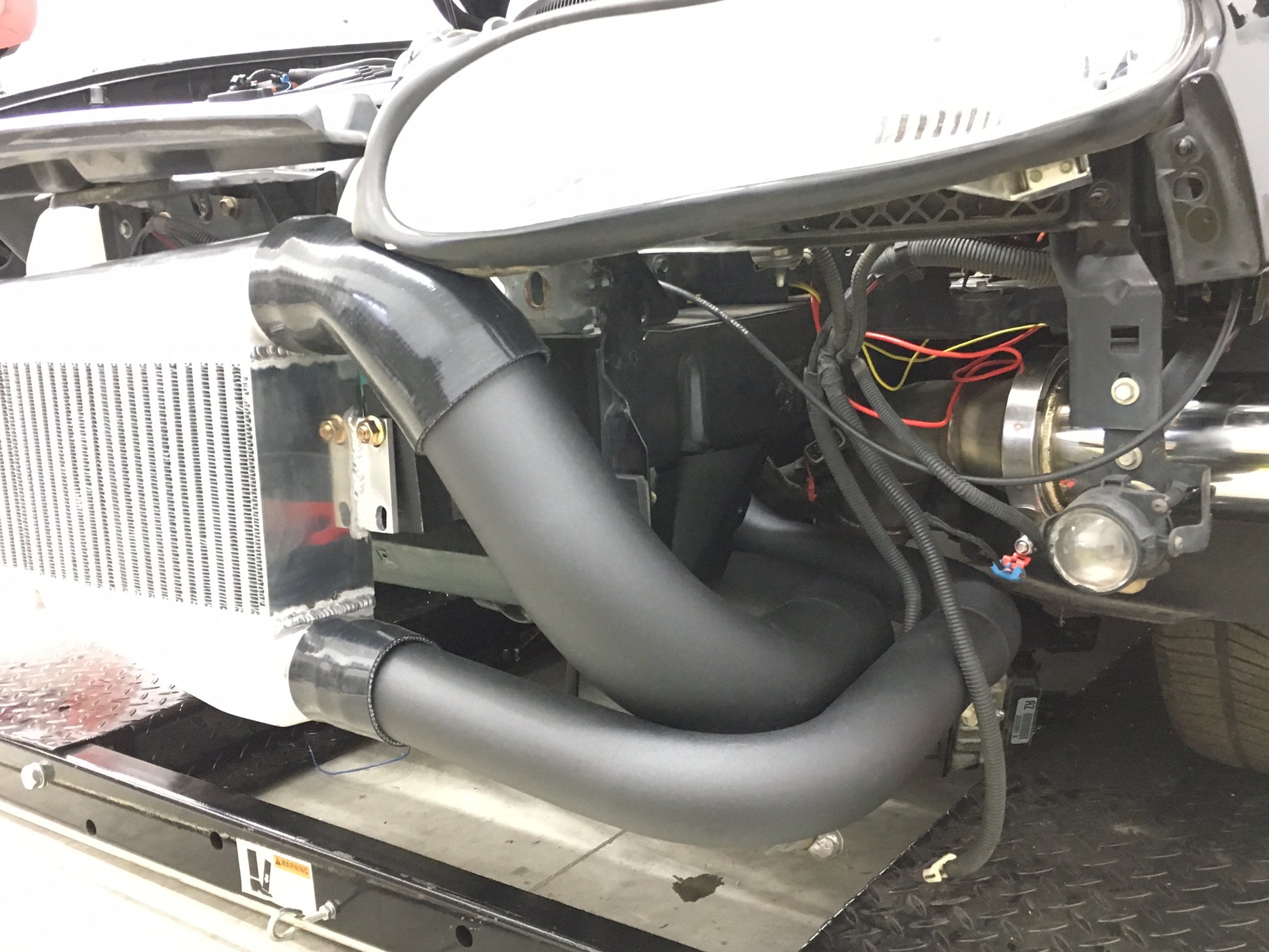

* ALUMINUM, Polished 2.5" cold side piping from turbos to intercooler and 3.5" cold side piping from Intercooler to Throttle Body with a pair of 50mm BOV flanges and now a threaded IAT Sensor. Photo shows optional black coating, POLISHED is standard.

* All necessary couplers and clamps included in this kit. Entire hotside consists of all v-band connections

* Hardware Kit included with all nuts/bolts

* Twin Oil feed and drain line kit INCLUDED

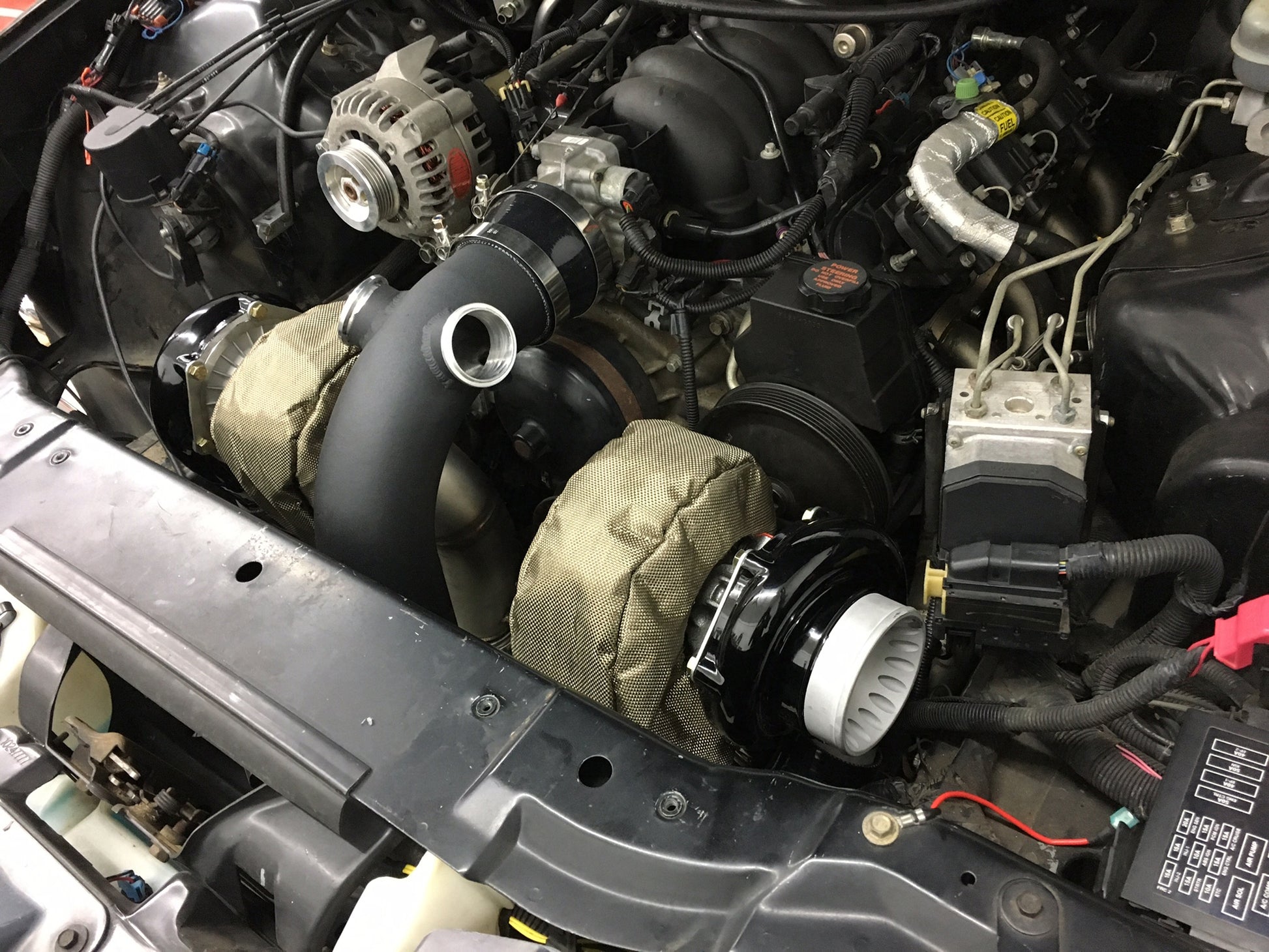

* Pair of T4 Turbo Blankets INCLUDED

* 50' Roll of Black Heat Wrap INCLUDED

**Piping kit only, requires other items noted to run, vehicle will not run without these outside sourced items completed by you, therefore sold as show only.

*Kit requires: Stood up radiator with coolant hoses and fans to clear piping/turbo. A/C removal. Turbo Style K-member required if wanting to run the dp's out the back. If running the OPTIONAL bumper exit dp's, you can use the factory K-member! Requires turbos, wastegates, and BOVs as well to complete (all of which we can supply from the drop-down menus)

*Kit built around a pair of standard T4 Turbochargers with 3" V-band discharges such as: Turbonetics Hurricane Series (TC66-TC78), Turbonetics T-series (7575, 7875), Precision T4 w/ S trim or H trim covers (6262s through 7675s) Comp CT4s or CT43's with T4 housings (6062s through 8079s) and many many more.

*Kit RETAINS: OEM Alternator location, OEM Front Sway bar, OEM Power steering, OEM ABS.

*Removing the ABS is recommended. Not required but recommended as it will not onyl clean up the engine bay but give you more freedom on installation.

Any questions, please e-mail direct to: huronspeedproducts@gmail.com
