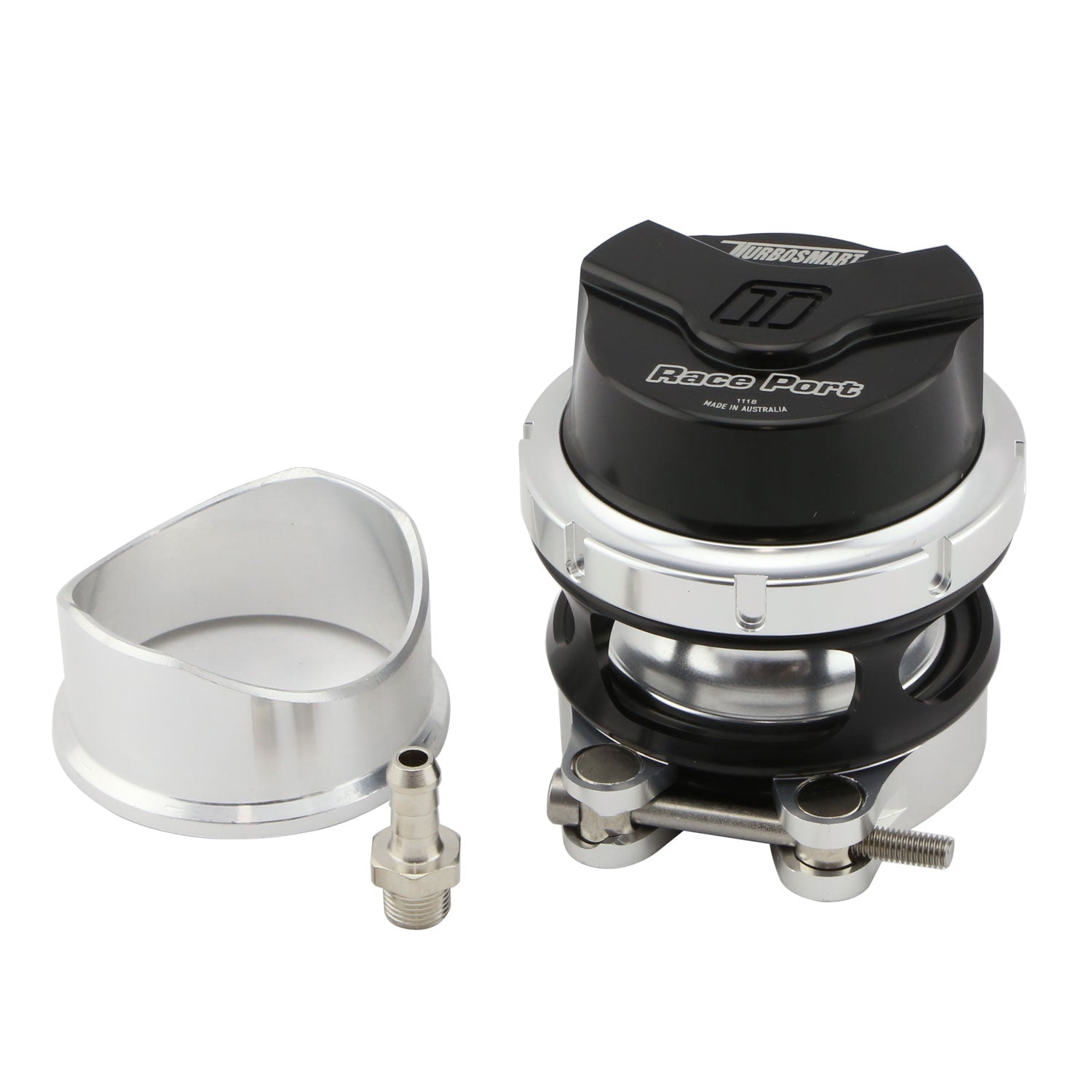

Turbosmart Gen-V Race Port BOV

The Race Port is famous for being an amazingly small and light BOV for supercharged competition level engines. Featuring our unique collar design and internal flow structures, it is 50% lighter and 25% smaller than the competition while flowing 330 CFM – making it the highest flowing BOV of it’s type on the market.
The supercharger-specific Race Port features a soft spring so it can stay open at idle, when the supercharger is still producing boost.

SUPPLIED WITH:

Vacuum fittings, weld flange, V-band assembly, and Pink Spring Rated -4 InHg (installed).
Billet 6000 series aluminium construction
Quick release v-band collar for ease of installation and removal
2.0″ Inlet flows over 330 CFM
MILSPEC hard anodized valve guide and stem
Hi Temp Silicon Nomex diaphragm
Positive sealing valve seat
Twin 1/16″NPT pressure ports for convenient positioning
Collar secured cap for quick spring changes
4inHg to 26inHg activation range
5 user configurable corrosion resistant springs available
Valve position sensor option
Designed, manufactured and validated in-house at Turbosmart HQ
